Road/Rail cleaning vehicle with lorry
2018.07.02 Article From : China Gotoo
Since 2016 year, Gotoo cooperated with the world famous special vehicle manufacture like Daimler and LADOG to produce the Rail/road dual-purpose comprehensive inspection vehicle, Electric power test vehicle, Rail/road dual-purpose traction vehicle, Rail/road dual-purpose sweeper, and Special-purpose tool container rescue vehicle and etc.

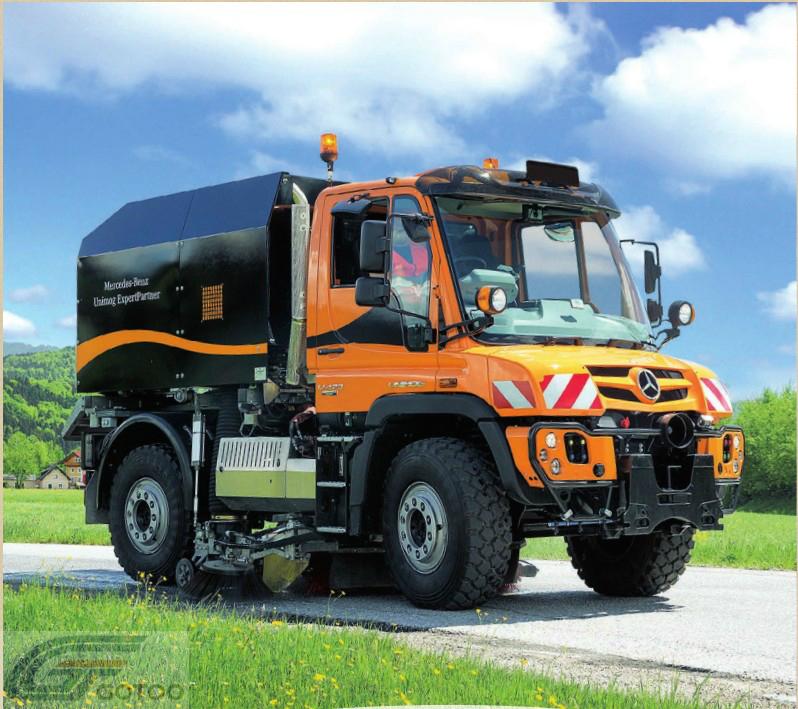

Road/Rail cleaning vehicle with 2-axle rail guidance
Features
-
Rail guidance unit with 2 axles
-
Diesel engine (Deutz) 120 lW at 2.300 rpm to drive the ventilator, hydraulic pumps and water pumps
-
Ventilator with 10.000 m3/h at 1.700 rpm of the motor
-
Contactless goroove cleaning with 1000 bar high pressure water nozzles
-
Water pump (6 bar) to sprinkle the absorbed waste
-
Water pump 50 bar with 70 ltr/min for hose drum with manual spray gun
-
Stainless steel dirt container 6,0m3
-
Water container 2,0m3 with integrated dirt water reservoir
-
Suction shoes and steel scrapers on both sides
-
Suction shoes and scrapers can be pneumatically lifted/lowered
Main advantages
-
Reliable Sch?rling technology
-
Compact and cost efficient rail cleaning vehicle
-
Guidance trolly can be lifted/lowed very fast to work during traffic
Options
-
Manual suction jib at the rear side of the container
-
Manual suction jib on top of the container
-
1000 bar high pressure unit

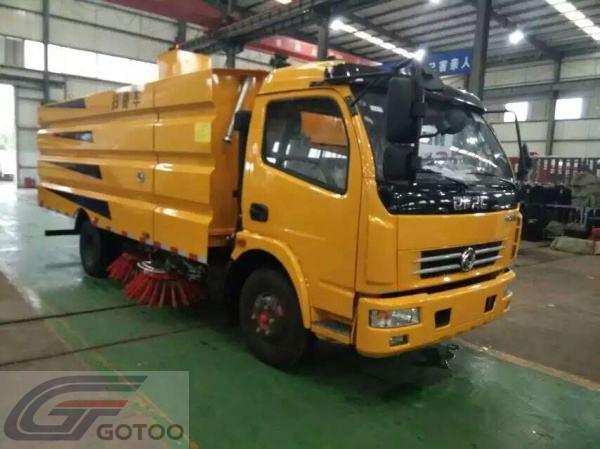

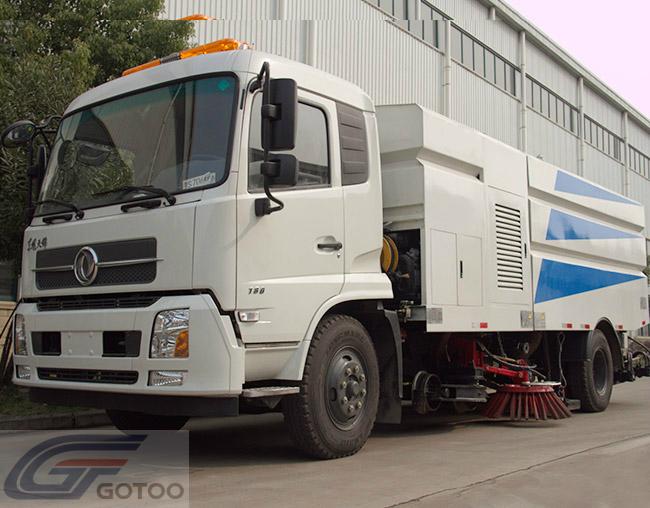

We also have the Road/Rail cleaning vehicles with the chassis supplied by China local manufactures . Photos as below.
China local
